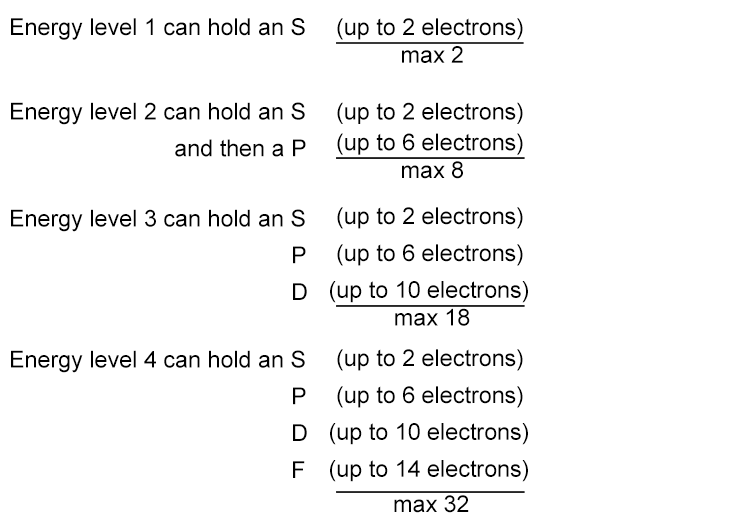

one way of showing advanced electron arrangement

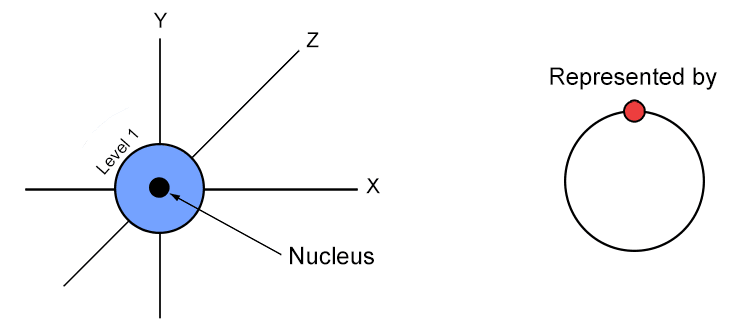

So hydrogen would look like:

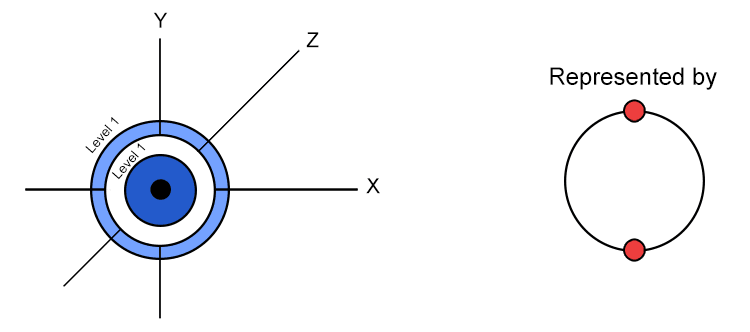

Helium would look like:

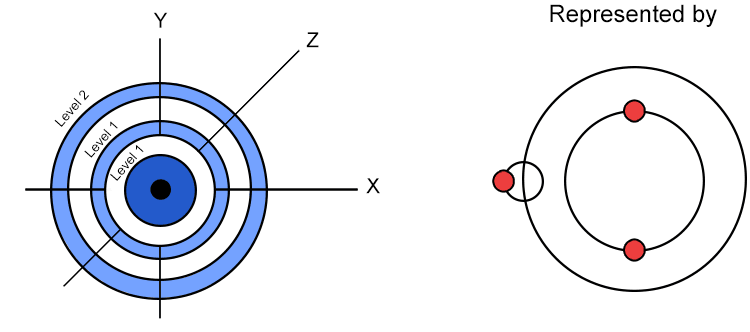

Lithium:

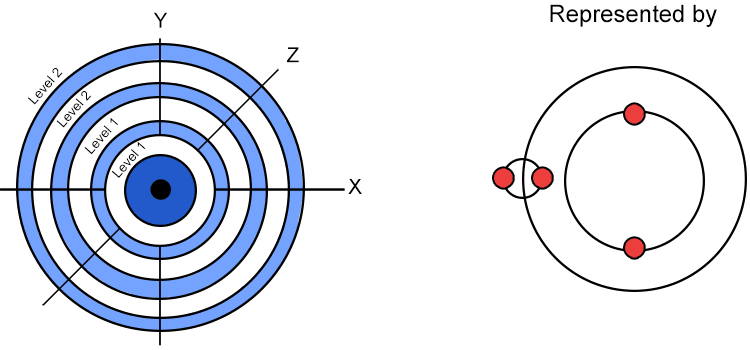

Beryllium:

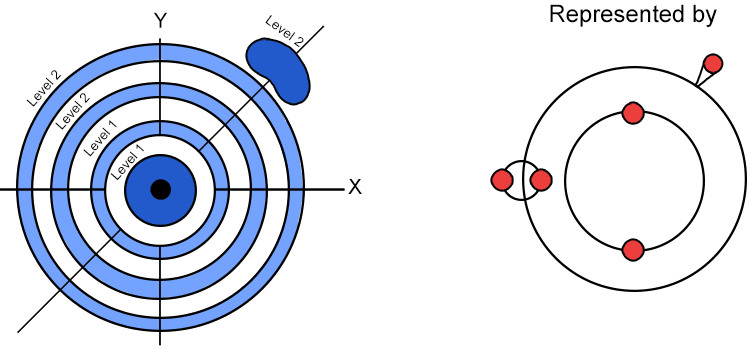

Boron:

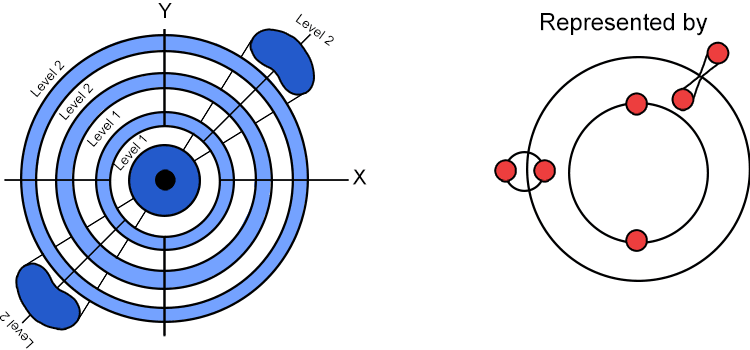

Carbon:

This is not accurate but gives you a visual way of comprehending advanced electron arrangements. If we carried on any further these diagrams would become very complicated. The orbitals or each three-dimensional region of space do allow some overlap but due to the principles of quantum mechanics and negative charges repelling the electrons, still keep in distinct non-clashing probable regions.
